Description:

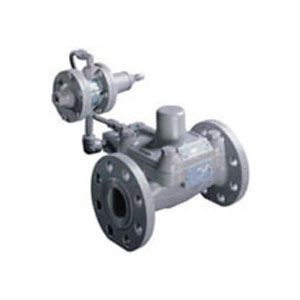

The Radial Flow Valves are intended for use in the distribution and transmission of natural and other industrial gases.
These pilot-operated top entry valves are designed for simple installation and ease of service, for a wide variety of applications including pressure regulation, overpressure relief, flow control, or for on/off applications.
By adding an optional inspirator block and low differential diaphragm, the RFV begins to throttle at just 0.75 psid, making the RFV highly effective in low differential pressure applications. Available in 2, 3, 4, and 6 inch sizes, the RFV uses industry standard flange-to-flange dimensions on ANSI Class 150, 300, and 600 (2″) models.
Cast Steel Body, Investment Cast 17-4PH Stainless Steel Cages, Hydrin 70 Duro Diaphragm, Buna-N O-rings, Stainless Steel Strainer, Zinc Plated Steel Spring and Manifold Block.
Selection Program
The Landis+Gyr Gas Product Selection Program is a multi-faceted program that is designed to assist in the selection and sizing of the gas products sold by Landis+Gyr and includes all Product Brochures, Instructional Manuals and Parts Lists.
Click here for more information.
