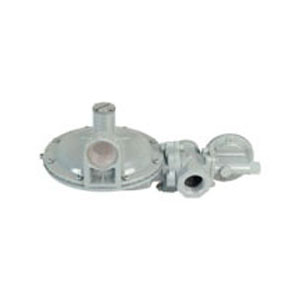

Landis+Gyr 1800B2 Series regulator
The 1800B2 Series regulator is a self-operated regulator used primarily in supplying gas for residential and commercial applications such as private residences, small laundries, bakeries, boilers, shopping centres and schools. Outlet pressures range from 3.5 inch wc to 2 psig (0.87 to 13.8 kPa). Capacity is 2500 Sft³/h (70.8 Sm³/h). Inlet pressures up to 150… Leer más
Description:
The 1800B2 Series regulator is a self-operated regulator used primarily in supplying gas for residential and commercial applications such as private residences, small laundries, bakeries, boilers, shopping centres and schools.
Outlet pressures range from 3.5 inch wc to 2 psig (0.87 to 13.8 kPa). Capacity is 2500 Sft³/h (70.8 Sm³/h). Inlet pressures up to 150 psig (1050 kPa). Connection sizes ¾, and ¼ inch screwed NPT or BSP (standard).
Available with overpressure shut-off, under-pressure shut-off, full capacity internal relief and elevation compensation orifice, which provides constant outlet pressure even when inlet pressure fluctuates greatly.
Selection Program
The Landis+Gyr Gas Product Selection Program is a multi-faceted program that is designed to assist in the selection and sizing of the gas products sold by Landis+Gyr and includes all Product Brochures, Instructional Manuals and Parts Lists.
Availability
- Asia-Pacific
